[edit] Freeciv Web Client

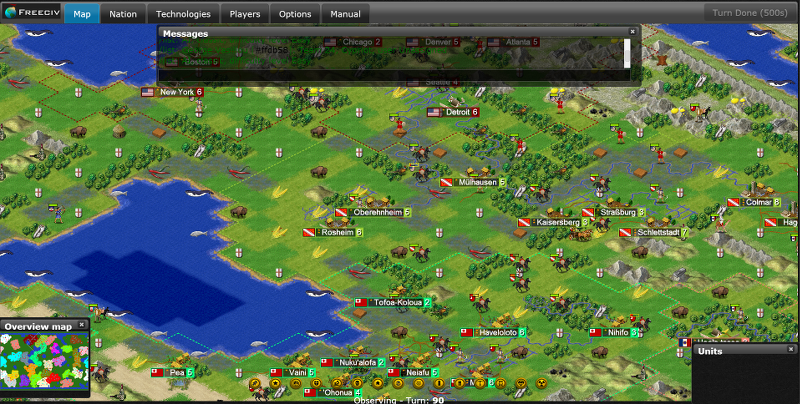

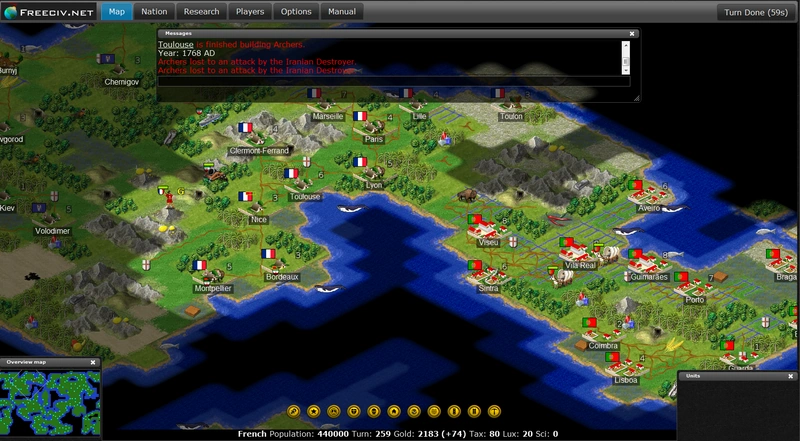

Freeciv web client

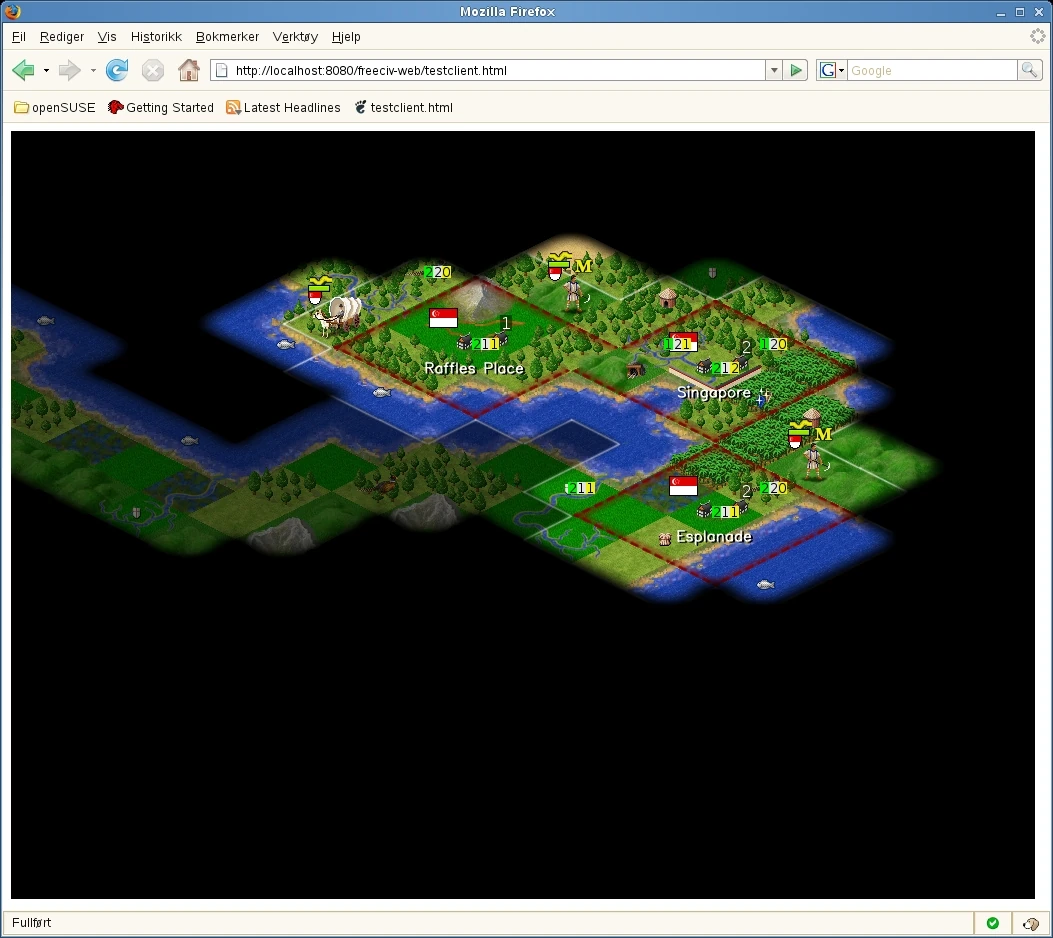

Freeciv web client


It uses a webservice which allows a browser to communicate with a civclient process on the server. The mapview is rendered using the HTML canvas element which is drawn upon using Javascript.

This assumes that web application is installed under /home/projects/freecivweb It is suggested to install Resin under /opt/resin

[edit] Development

Currently developed in a separate branch in Freeciv SVN, you can browse the freeciv-web svn repository

Contact: Andreas R. - <andrearo AT pvv.ntnu.no>


[edit] Java

Install Java JDK 6 http://java.sun.com/javase/downloads/index.jsp Make sure that java and javac are installed correctly, and that the classpath is setup correctly for Java and Resin.


[edit] Resin Application Server

resin-3.1.2 - http://www.caucho.com/download/ Use the example resin.conf as a starting point. http://svn.gna.org/viewcvs/*checkout*/freeciv/branches/freeciv-web/client/gui-web/doc/resin.conf


[edit] GZIP Servlet Filter

http://www.onjava.com/onjava/2003/11/19/examples/jspbook.jar Put it in /opt/resin/lib

A GPL replacement should be found.

[edit] Apache Axis

http://ws.apache.org/axis/index.html

- Download axis-bin-1_4.zip from http://www.powertech.no/apache/dist/ws/axis/1_4/

- Install Axis. New contents of /home/projects/freecivweb/WEB-INF/lib

axis-ant.jar  commons-discovery-0.2.jar  jaxrpc.jar       saaj.jar
axis.jar      commons-logging-1.0.4.jar  log4j-1.2.8.jar  wsdl4j-1.5.1.jar

[edit] csoap

csoap 1.1.0 - http://csoap.sourceforge.net/


[edit] Compile Freeciv web client

- SVN checkout webclient branch like this: svn co svn://svn.gna.org/svn/freeciv/branches/freeciv-web/ freeciv

- Compile Freeciv client: First run: ./autogen.sh --enable-client=web

Then run: make && make install


Freeciv web client architecure
Freeciv web client architecure


[edit] Install webapp

1. Copy /client/gui-web/www-docs to /home/projects/freecivweb

2. Copy the main Freeciv source (everything!) to /home/projects/freecivweb/freeciv


[edit] Running the web client from the browser

- Start Resin 'bin/httpd.sh start'

- Point your web browser to http://localhost:8080

- Press 'Start new game'. Wait until you see that the civclient and civserver have been started (logging to message box at bottom of screen).

- Enter the '/start' command in the textfield at the bottom of the screen. Then the game will start. Wait...


[edit] Debugging:

If something goes wrong, see the Javascript console in Firefox.

- Testing the civclient: gdb --args civclient -a --debug=3 -- -NHTTPport 2000 -autostartserver

- WSDL for the Freeciv webservice: http://localhost:8080/axis/FreecivWebService.jws?wsdl

- Testing a Freeciv webservice (Java) method: http://localhost:8080/axis/FreecivWebService.jws?method=getFreecivState

- Testing the civclient C webservice:

http://localhost:2000/civwebserver

(If civclient is run with -NHTTPport 2000 parameter)

Always returns: "Sorry! I only speak with 'POST' method". Meaning that at least there is a server socket listening at port 2000.

-Logging: See resin/log/jvm-default.log (The civclient and civserver will log std.err and std.out here).
